LRT Lift-Rotate-Transfer System — Overhead Patient Lift
The LRT Lift-Rotate-Transfer system is a floor-to-ceiling overhead patient lift with a folding articulating arm (440 lb on the 4 or 5 ft arm, 300 lb on the 6 ft arm), portable 300 lb or 440 lb motor packages and two slings included.
LRT Lift-Rotate-Transfer System — Overhead Patient Lift
Contact us to verifyQuestions? (803) 926-1493
Quoted to your configuration — arm length, motor package and mounting are confirmed before we price the complete system; freight is quoted with the order. Shipping details
Returns: generally non-returnable once shipped. Details
Verify before ordering
The LRT is configured to your room — arm length, motor package, ceiling height, mounting and slings — so it is quoted rather than sold from this page. Request a quote or talk to an expert at (803) 926-1493 and we will price the complete system, including freight.
Request a Quoteor call (803) 926-1493
Self-pay retailer · insurance info
Buy directly — no insurance approval required. We’re a self-pay retailer and don’t bill Medicare or insurance; some products may qualify for reimbursement under your plan. Reimbursement details
Showroom availability varies. Please call ahead to confirm a floor model before visiting.
Product Details
Lift, Rotate, Transfer — from the ceiling, not the floor

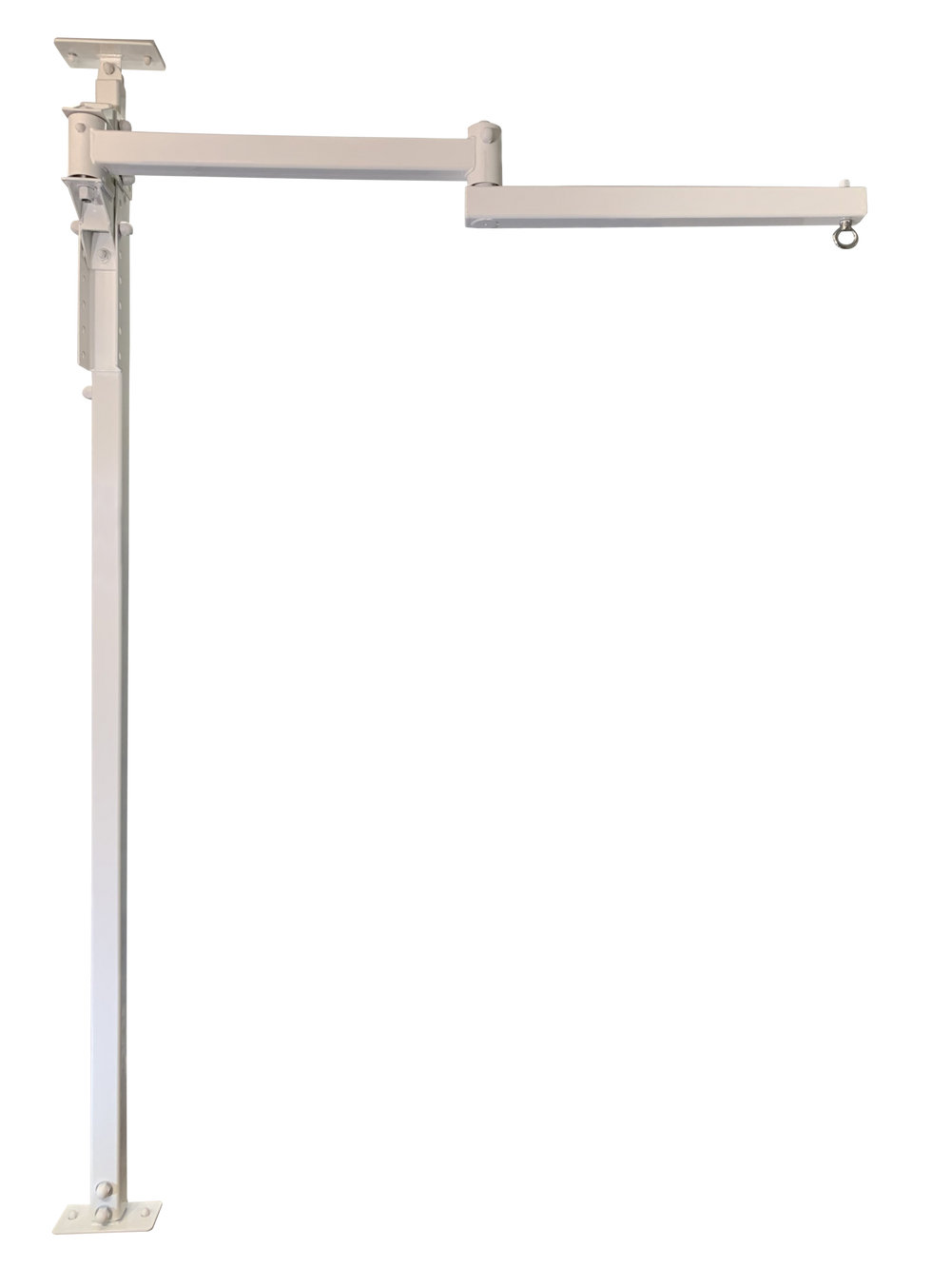

The LRT (Lift-Rotate-Transfer) system by EMR Distributors is an overhead patient lift that mounts between floor and ceiling (or floor and wall) and swings a portable lift motor over the bed, chair, commode or tub. Because the mast carries the load, nothing rolls across the floor: no base to steer around furniture, no legs to slide under a bed, and a footprint of a single post.
How it works
- Articulating arm: a two-section arm pivots through the room so one installation can serve several transfer points. The arm folds flat against the mast when not in use.
- 5-position height-adjustable arm and a telescoping upper mast set the working height to the ceiling and the caregiver.
- Adjustable rotation stops limit the upper arm's swing in each direction, so the motor always parks where it should.
- Swivel eyelet with a large opening keeps the motor strap from twisting during a lift.
- Portable motor packages: a 300 lb or a 440 lb motor package clips to the arm. Motor packages include the reacher bar as standard, and the motor can move between LRT installations in the home.
Configured to your room
- Arm length: 4 ft, 5 ft or 6 ft articulating arm (8, 10 or 12 ft of reach). Rated maximum load: 440 lb on the 4 ft and 5 ft arm, 300 lb on the 6 ft arm — each figure includes the portable lift motor, sling and patient (EMR LRT Users Guide rev. 1).
- Ceiling height: models for 7 ft 6 in. up to 14 ft ceilings (custom to 16 ft); joist mount options for flat and cathedral ceilings and mobile homes.
- Mounting: ceiling mount or wall/ceiling mount is standard; a floor (foot) mount from 0 to 6 in. carries no upcharge, with 12, 18 and 24 in. foot extensions for taller ceilings. Joist and stud mounting hardware is specified to the structure.
- Options: rotation-stop pairs, additional slings, repositioning and limb-lifting slings, disposable slings.
- Included: two slings with every LRT or package, in your choice of three models and fabrics (a small upcharge applies to XXL).
Warranty
EMR backs the LRT with a 6-year warranty; the portable lift motor carries its own manufacturer's warranty and service.
Sling solutions
Full-back and mid-back universal slings for seated transfers; amputee and hygiene slings; limb lifters for dressing changes and wound care; repositioning slings for boosting up or turning in bed.
Quoted, not sold from the page
Arm length, motor package, ceiling height, mounting and slings all change the price, and freight is quoted on every LRT order. Use Request a Quote, call us, or visit our West Columbia showroom, and we will price the complete system for your room.
Key Features
- Floor-to-ceiling or floor-to-wall mast, single-post footprint
- Two-section articulating arm, folds flat for storage
- 4 ft / 5 ft arm rated 440 lb, 6 ft arm rated 300 lb (motor, sling and patient included)
- Portable 300 lb or 440 lb motor packages (reacher bar standard)
- 5-position height-adjustable arm, telescoping upper mast
- Adjustable rotation stops and swivel eyelet
- Two slings included (three models and fabrics)
- Fits 7 ft 6 in. to 14 ft ceilings (custom to 16 ft)
- 6-year LRT warranty
Specifications
| Weight Capacity | 440 lbs |
|---|---|
| Manufacturer | EMR Distributors |
Specifications are provided by the manufacturer and may change without notice; product details and dimensions can vary slightly. If any detail differs from what’s shown here, we’ll contact you before your order ships.
Compatibility
Replacement parts and accessories
Need a battery, charger, seat or other part for your EMR Distributors patient lift? Browse Patient Lift Parts or search by part number in the parts finder. Have your model and serial number ready if you are unsure of the fit.
Shipping & Returns
Shipping
Delivery for this system is quoted and scheduled after your free assessment; it does not ship as a parcel and is not part of the standard parcel promotion.
Estimated timing
Quoted to your configuration — arm length, motor package and mounting are confirmed before we price the complete system; freight is quoted with the order.
Freight and oversized equipment ships within the 48 contiguous states and Washington, DC. Alaska, Hawaii, U.S. territories, APO/FPO and international destinations are not available through online checkout for these products. Full shipping & returns policy
Returns. For health, safety, sanitation, and manufacturer requirements, this type of product is generally non-returnable once shipped. If you’re unsure whether an item is eligible for return, please contact us before placing your order. Full return policy
Warranty
| Frame | 6 Years (LRT structure; lift motor per its manufacturer) |
|---|
FAQ
Every LRT is configured: arm length (4, 5 or 6 ft), a 300 lb or 440 lb motor package, ceiling or wall/ceiling mounting, foot extensions for the ceiling height, rotation stops, slings and freight. We confirm those with you and quote the complete system.
EMR rates the 4 ft and 5 ft arms at 440 lb and the 6 ft arm at 300 lb. Those figures include the portable lift motor and the sling as well as the patient, so pair the arm length with a motor package and sling rated for the same load.
No. The LRT is a floor-to-ceiling (or floor-to-wall) mast with a swinging arm, so it installs without a ceiling track and can be moved to another room later.
Two slings come with every LRT or package (three models and fabrics to choose from; XXL carries a small upcharge). Motor packages include the reacher bar, and a ceiling mount or wall/ceiling mount is standard. A 0 to 6 in. floor foot mount carries no upcharge.
Yes. The motor packages are portable and clip to the arm, so one motor can serve more than one LRT installation in the home.
