Graham-Field
Lumex HybridLX Rollator Transport Chair
The Hybrid LX1000 Rollator Transport Chair is an ultra-lightweight 2-in-1 mobility aid weighing just 22 lbs, featuring a high-grade aluminum frame that transitions tool-free between a rollator walker and a transport chair. It includes locking handbrakes, an 18-inch wide mesh seat, 8-inch all-terrain wheels, and a one-handed folding mechanism for easy travel and storage.
Free standard shipping · continental US
In-stock items ship in 1–5 business days; some locally stocked items ship the next business day. Shipping details
Customize & Buy
Self-pay retailer · insurance info
Buy directly — no insurance approval required. We’re a self-pay retailer and don’t bill Medicare or insurance; some products may qualify for reimbursement under your plan. Reimbursement details
Showroom availability varies. Please call ahead to confirm a floor model before visiting.
Product Details

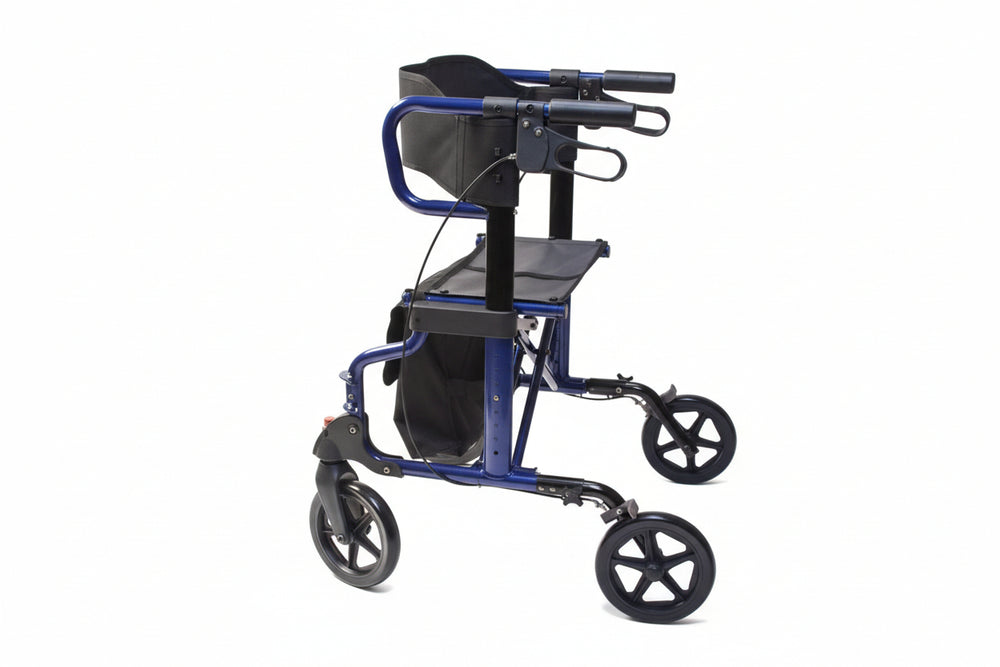

The Lumex® HybridLX Rollator Transport Chair combines the convenience of a four-wheel rollator with the added versatility of a transport chair—all in one lightweight mobility aid.
Weighing only 22 lbs including the footrests, the HybridLX features a durable aluminum frame and supports up to 300 lbs. It is designed primarily for use as a rollator and can quickly convert into a transport chair when the user needs assistance or a place to ride.
With an 18" wide mesh seat, large 8" wheels, locking handbrakes, removable footrests, and a compact folding design, the HybridLX is a versatile choice for everyday mobility, shopping, appointments, travel, and longer outings.
Key Features
- 2-in-1 design — functions as both a four-wheel rollator and transport chair
- Lightweight aluminum frame weighs just 22 lbs, including footrests
- Supports up to 300 lbs
- 18" wide mesh seat for comfortable seating
- Soft, flexible polyester backrest
- Removable, length-adjustable footrests for transport chair use
- Easy-to-use locking handbrakes for stopping and parking
- Large 8" wheels for smooth rolling indoors and over rougher outdoor surfaces
- Pull-up folding strap makes folding quick and easy
- Tool-free assembly for added convenience
- Under-seat storage pouch for personal belongings
- Adjustable handle height from 30" to 37"
- Designed for users approximately 5'4" to 6'2"
- Available in Titanium and Majestic Blue
- Backed by a 3-Year Limited Warranty
Why Choose the Lumex HybridLX?
The biggest advantage of the HybridLX is its 2-in-1 versatility. Use it as a traditional rollator when you want independent walking support. When you need additional assistance, attach the included footrests and use it as a caregiver-pushed transport chair.
This can eliminate the need to bring both a walker and a separate transport chair on longer outings.
At only 22 lbs, the HybridLX is also relatively lightweight for a combination rollator and transport chair, making it easier to fold, lift, and transport.
At a Glance
300 lbs — Weight Capacity
22 lbs — Product Weight
18" — Seat Width
21.25" — Seat Height
8" — Wheel Diameter
2-in-1 — Rollator + Transport Chair
5'4"–6'2" — Recommended User Height
Rollator & Transport Chair in One
In rollator mode, the HybridLX provides four-wheel walking support with ergonomic hand grips, handbrakes, a comfortable seat, and storage for personal items.
When additional assistance is needed, the HybridLX can be converted into a transport chair using the included removable and adjustable footrests. This gives caregivers the ability to push the user for shorter periods when walking becomes difficult.
The manufacturer specifically states that the HybridLX is designed primarily as a rollator and can transform into a transport chair when the user needs a short rest.
Comfortable for Everyday Use
The 18" wide mesh seat and flexible polyester backrest provide a comfortable place to sit and rest. Large 8" wheels help the HybridLX roll smoothly indoors and outdoors, including over rougher surfaces.
The included storage pouch also provides a convenient place for a phone, wallet, keys, or other small personal items.
Important Safety Information
When the HybridLX is being used as a transport chair, the user must be accompanied by a caregiver or attendant. It is not designed for the seated user to propel themselves independently.
Need Help Choosing the Right Rollator?
Not sure if the Lumex HybridLX Rollator Transport Chair is the right choice for you or a family member?
Specifications
| Weight Capacity | 300 lbs |
|---|---|
| Overall Length | 31 in. |
| Overall Width | 26 in. |
| Overall Height | 31.5 in. |
| Seat Width | 18 in. |
| Product Weight | 22 lbs |
| Wheel Configuration | 4-Wheel |
| HCPCS Code | E0143, E0156 |
| Frame Size | Compact |
| Disassembles | Yes |
| Manufacturer | Graham-Field |
| Specification | HybridLX |
|---|---|
| Weight Capacity | 300 lbs |
| Product Weight | 22 lbs, including footrests |
| Seat Width | 18" |
| Seat Depth | 11" |
| Seat Height from Floor | 21.25" |
| Width Inside Hand Grips | 18.5" |
| Overall Width | 26" |
| Overall Depth with Footrests | 40" |
| Depth Front to Rear | 28.5" |
| Minimum Handle Height | 30" |
| Maximum Handle Height | 37" |
| Wheel Diameter | 8" |
| Recommended User Height | 5'4"–6'2" |
| Available Colors | Titanium or Majestic Blue |
| Titanium Model | LX1000T |
| Majestic Blue Model | LX1000B |
| Warranty | 3-Year Limited Warranty |
Specifications are provided by the manufacturer and may change without notice; product details and dimensions can vary slightly. If any detail differs from what’s shown here, we’ll contact you before your order ships.
Manuals & Resources
Shipping & Returns
Shipping
Free standard shipping within the continental United States during the promotion (excludes freight, oversized products and optional delivery services). When the promotion is not running, parcel shipping is calculated at checkout from destination, weight and package.
Estimated timing
In-stock items ship in 1–5 business days; some locally stocked items ship the next business day.
Expedited shipping: call us for options. Alaska, Hawaii and international orders: contact us for a quote. Full shipping & returns policy
Returns. Return requests must be made within 14 calendar days of delivery and need a Return Merchandise Authorization (RMA) first. Items must be unused, unassembled and in like-new condition with their original packaging; the customer pays return shipping, and a restocking fee of up to 20% may apply. Full return policy
Warranty
| Frame | 3 Year Limited Warranty |
|---|
FAQ
The Hybrid LX Rollator converts between rollator walker and transport chair in seconds with no tools required. The footrests are tool-free and adjustable, so caregivers or users can make the switch on the fly without any extra equipment.
The Hybrid LX Rollator weighs just 22 lbs including the footrests, making it one of the lighter options in its class. It features a one-handed folding mechanism using a simple pull-up strap, so it collapses quickly and compactly enough to fit in most car trunks or even checked airline luggage.
The Hybrid LX Rollator is designed for both indoor and outdoor use. Its large 8-inch wheels roll smoothly over everyday indoor floors as well as rougher outdoor surfaces like grass, gravel, and uneven pavement.
Yes, the Hybrid LX Rollator includes a built-in under-seat storage pouch designed to keep personal essentials like your phone, wallet, and keys secure and within easy reach. This makes it especially convenient for errands, walks, or travel without needing to carry a separate bag.
