Harmar

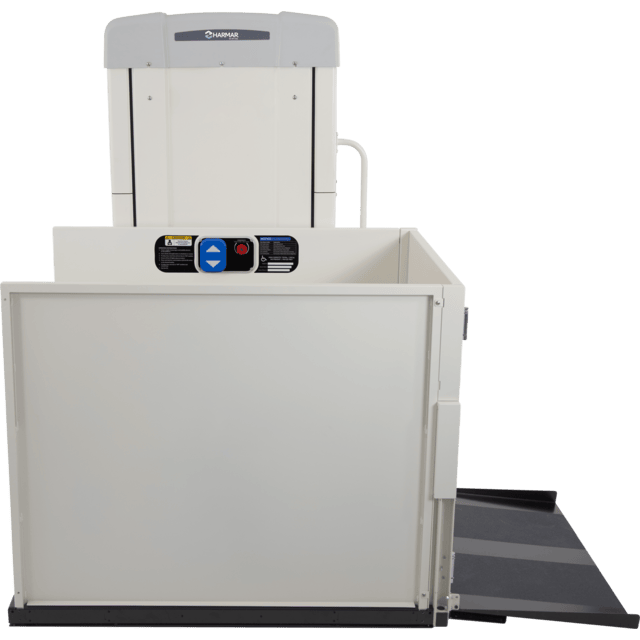

Harmar VPL400-X Vertical Platform Lift
The Harmar VPL400-X Vertical Platform Lift provides a safe and convenient way for wheelchair and mobility device users to overcome steps and elevation changes around the home.
Quoted after a free assessment — we schedule installation once the measurements and configuration are agreed. Shipping details
Returns: return restrictions apply. Details
Verify before ordering
This system is measured, quoted and installed for your property, so it isn't sold online. Request a free assessment and we'll review your space, measurements and mobility needs, then quote the complete installed job.
Request a Free Assessmentor call (803) 926-1493
Self-pay retailer · insurance info
Buy directly — no insurance approval required. We’re a self-pay retailer and don’t bill Medicare or insurance; some products may qualify for reimbursement under your plan. Reimbursement details
Product Details
With a generous 750 lb weight capacity, multiple platform sizes, weather-resistant construction, and simple controls, the VPL400-X can provide an excellent accessibility solution for porches, decks, garages, and raised home entrances where a traditional wheelchair ramp may require too much space.
Designed for residential applications, the VPL400-X combines Harmar's SteadyDrive technology, an easy-to-operate Big Blue Paddle control, built-in safety systems, and durable construction suitable for outdoor environments.
Key Features
- 750 lb weight capacity
- Designed for wheelchair, power chair, and mobility scooter access
- Multiple platform sizes available
- SteadyDrive technology for smooth, quiet, and stable operation
- Large 4" x 5" Big Blue Paddle control
- High-contrast, ergonomic constant-pressure control
- Seal-Kor powder-coated finish
- Stainless steel hardware for outdoor use
- Safety pan underneath the platform
- Emergency stop button
- Overspeed brake
- Gate interlocks
- Manual lowering capability
- Available platform and landing gates
- Fixed or automatic folding ramp available
- 120V AC power
- 750 lb capacity
- 2-Year Parts Warranty
An Alternative to a Long Wheelchair Ramp
A wheelchair ramp can be an excellent accessibility solution, but it isn't practical for every home.
When several feet of vertical rise need to be overcome, a code-compliant ramp can require a significant amount of space. The Harmar VPL400-X provides vertical access without requiring a long ramp to extend across a driveway, yard, or around the side of a home.
This can make a vertical platform lift a great option for access to:
- Front porches
- Raised entrances
- Decks
- Garages
- Elevated landings
- Other residential entry points
750 lb Weight Capacity
The VPL400-X provides a 750 lb weight capacity, allowing it to accommodate the combined weight of the rider and many types of mobility equipment.
This makes it suitable for users of manual wheelchairs, power wheelchairs, and mobility scooters, provided the combined weight and dimensions fall within the lift's specifications.
Multiple Platform Sizes
Different wheelchairs and mobility devices require different amounts of platform space.
Harmar offers the VPL400-X in several clear platform sizes:
| Clear Platform Size | Guard Panel |
|---|---|
| 36" x 48" | 36" |
| 36" x 54" | 42" |
| 36" x 60" | 42" |
| 42" x 54" | 42" |
| 42" x 60" | 42" |
Choosing the correct platform size is important, especially for larger power wheelchairs and mobility scooters.
SteadyDrive Technology
The VPL400-X incorporates Harmar's SteadyDrive system, which is designed to provide a smooth, quiet, and stable lift.
This helps create a more comfortable experience as the platform travels between the lower and upper landings.
Easy-to-Use Big Blue Paddle Control
The VPL400-X features Harmar's Big Blue Paddle, a large 4" x 5" high-contrast ergonomic rocker paddle control.
Its oversized design makes the lift easier to operate, including for users who may have limited hand dexterity. The constant-pressure design requires the control to remain engaged while the platform is moving.
Designed for Outdoor Environments
Outdoor accessibility equipment needs to withstand exposure to the elements.
The VPL400-X features a Seal-Kor powder-coated finish and stainless steel hardware for outdoor use, helping provide durability for exterior residential installations.
Built-In Safety Features
The Harmar VPL400-X incorporates multiple safety systems, including:
- Safety pan beneath the platform
- Emergency stop button located on the platform
- Overspeed brake
- Gate interlocks
- Manual lowering tool
These features are designed to provide additional protection during everyday operation.
Available Gates & Ramp Options
The VPL400-X can be configured for different home layouts and accessibility requirements.
Available options include:
- 36" or 42" platform gates with EMI interlock
- 36" or 42" landing gates with interlock
- Key lock on the platform
- Fixed ramp
- Automatic folding ramp
The proper configuration will depend on the installation location, platform size, upper landing, and applicable local requirements.
Why Choose the Harmar VPL400-X?
The Harmar VPL400-X Vertical Platform Lift can be an excellent solution when stairs make it difficult or impossible for someone using a wheelchair, power chair, or mobility scooter to enter or exit their home.
Its combination of a 750 lb capacity, multiple platform sizes, weather-resistant construction, simple controls, and built-in safety features makes it a versatile alternative to constructing a long accessibility ramp.
It can also help preserve valuable yard, driveway, or garage space while providing direct vertical access between two levels.
Professional Installation Required
A vertical platform lift should be properly evaluated and professionally installed.
Before choosing a VPL400-X, several factors should be considered, including:
- Required vertical travel
- Available installation space
- Wheelchair or scooter dimensions
- Combined user and mobility device weight
- Platform size
- Upper and lower landing configuration
- Gate requirements
- Electrical requirements
- Local building codes and permitting requirements
Our mobility experts can help review your application and determine the proper platform size, gates, ramp configuration, and installation requirements.
Need Help With a Harmar VPL400-X?
Have questions about the Harmar VPL400-X Vertical Platform Lift, pricing, measurements, installation, or which platform size you need?
We'll help you determine the right vertical platform lift and configuration for your home.
Free assessments are offered in Columbia, South Carolina, and the surrounding area.
Specifications
Harmar VPL400-X Specifications
| Specification | Harmar VPL400-X |
|---|---|
| Weight Capacity | 750 lbs |
| Speed | 9.5–15 FPM |
| Drive Motor | 2/3 HP, 90V Fully Sealed DC Motor |
| Power Supply | 120V AC |
| Required Circuit | 15 AMP Circuit Breaker |
| Platform Widths | 36" or 42" |
| Platform Lengths | 48", 54" or 60" depending on width |
| Control | 4" x 5" Constant-Pressure Paddle |
| Outdoor Construction | Seal-Kor Powder Coat / Stainless Steel Hardware |
| Application | Residential |
| Warranty | 2-Year Parts Warranty |
Specifications are provided by the manufacturer and may change without notice; product details and dimensions can vary slightly. If any detail differs from what’s shown here, we’ll contact you before your order ships.
