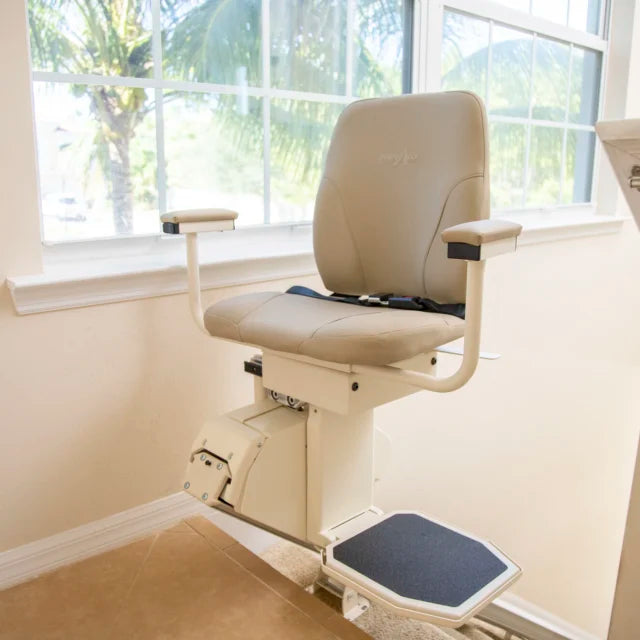

Harmar Pinnacle Heavy Duty SL600HD Straight Stairlift
Stair Lift
(Model No. )
Verify before ordering
This system is measured, quoted and installed for your property, so it isn't sold online. Request a free assessment and we'll review your space, measurements and mobility needs, then quote the complete installed job.
Request a Free Assessmentor call (803) 926-1493
Specifications are provided by the manufacturer and may change without notice; product details and dimensions can vary slightly. If any detail differs from what’s shown here, we’ll contact you before your order ships.
Overview
The Harmar Pinnacle SL600HD Heavy Duty Stair Lift is designed for users who need a higher weight capacity, more seating space, and additional stability when traveling up and down a straight staircase.
With an impressive 600 lb weight capacity, the SL600HD combines heavy-duty construction with a comfortable extra-wide, high-back seat, sturdy stationary armrests, an oversized reinforced footrest, and Harmar's unique slide-swivel seat.
The SL600HD is designed to provide a secure and comfortable ride while helping users maintain greater independence and access throughout their home.
Key Features
- 600 lb weight capacity
- Heavy-duty design for straight staircases
- 18.75" wide seat for additional seating room
- High-back contoured seat for comfort and support
- Sturdy stationary armrests for added stability
- Reinforced oversized footrest
- Unique 85° slide-swivel seat
- Seat swivels at both the top and bottom landings
- Footrest and chassis obstruction sensors
- Overspeed brake
- Seat belt included
- Operating control conveniently located in the armrest
- Battery operation allows continued use during a power outage
- Patented lubrication-free drive system
- Track lengths available up to 40 feet
- Rated for residential and commercial applications
- 3-Year Parts Warranty
- 10-Year Gear Rack Warranty
- 1-Year Battery Warranty
600 lb Heavy-Duty Weight Capacity
The biggest advantage of the Pinnacle SL600HD is its 600 lb weight capacity.
It is designed for users who may need more capacity, seating room, or stability than a traditional stair lift can provide. The heavy-duty design includes a reinforced footrest, sturdy armrests, and an extra-wide seat to provide additional support during everyday use.
Extra-Wide, High-Back Seat
Comfort is especially important when choosing a heavy-duty stair lift.
The SL600HD features an 18.75" wide x 14" deep seat along with a 16.5" x 17.5" high backrest. The contoured seating provides additional support, while the stationary armrests give the user sturdy handholds when getting into or out of the chair.
Unique Slide-Swivel Seat
One of our favorite features of the SL600HD is Harmar's slide-swivel seat.
Instead of simply rotating in place, the seat pivots 85° while sliding away from the wall. This creates additional room for the user to get on or off the stair lift while still allowing the unit to be installed closer to the wall.
The seat can swivel at both the top and bottom landings, making transfers easier and more accessible for users with limited mobility.
Built-In Safety Features
The Harmar SL600HD incorporates multiple safety features to help provide a secure ride:
- 85° interlocked swivel seat
- Overspeed brake
- Footrest obstruction sensors
- Chassis obstruction sensors
- Seat belt
If the footrest or chassis encounters an obstruction while the stair lift is moving, the safety sensors are designed to stop the lift.
Clean, Reliable Pinnacle Drive System
The SL600HD uses Harmar's patented nylon polymer gear rack and helical worm gear drive system.
The low-friction design eliminates maintenance associated with lubricating the track while also helping extend battery operation during a power outage. That means no greasy track running alongside your staircase and less routine maintenance.
Harmar SL600HD Specifications
| Specification | Harmar Pinnacle SL600HD |
|---|---|
| Weight Capacity | 600 lbs |
| Seat Size | 18.75" W x 14" D |
| Backrest Size | 16.5" W x 17.5" H |
| Track Length | 15'6" to 40' |
| Incline Range | 27°–48°* |
| Folded Width | 16.5" from wall |
| Travel Speed | 14 FPM |
| Seat Swivel | 85° at top & bottom landings |
| Drive System | Patented nylon polymer gear rack / helical worm gear |
| Application | Residential & Commercial |
| Parts Warranty | 3 Years |
| Gear Rack Warranty | 10 Years |
| Battery Warranty | 1 Year |
Inclines above 45° may require local jurisdiction approval.
Available Options
The SL600HD can be configured with several available options, including:
- Key lock
- Extra rail
- Manual lowering tool
SL600HD vs. Standard Stair Lifts
The SL600HD is an excellent option when a traditional stair lift doesn't provide enough capacity or seating space.
Compared with the Harmar SL300's 300 lb capacity, the SL600HD doubles the weight capacity to 600 lbs while providing a wider seat, high backrest, reinforced footrest, heavy-duty armrests, and the slide-swivel seating system.
If the user doesn't require the additional capacity and seating room, the SL300 may be the more compact choice. But when higher capacity, additional room, and transfer stability are priorities, the SL600HD is designed specifically for those needs.
Professional Stair Lift Installation
Every staircase and user is different. Proper measurements are important before ordering a heavy-duty stair lift.
Staircase length, incline, available width, landing space, user weight, seating requirements, and transfer needs should all be considered when determining whether the SL600HD is the right solution.
Our mobility experts can help review your staircase and determine the proper configuration before installation.
Need Help With a Harmar SL600HD?
Have questions about the Harmar Pinnacle SL600HD Heavy Duty Stair Lift, pricing, measurements, or installation?
Call our mobility experts at (803) 926-1493.
We'll help you determine if the SL600HD is the right stair lift for your needs and go over your installation options.
Free assessments are offered in Columbia, South Carolina, and the surrounding area.
This product includes the manufacturer's limited warranty. Length and coverage vary by manufacturer and model. For the warranty terms on this specific product, call (803) 926-1493 or contact us.
