Harmar Pinnacle SL300 Straight Stairlift
Stair Lift
(Model No. )
Verify before ordering
This system is measured, quoted and installed for your property, so it isn't sold online. Request a free assessment and we'll review your space, measurements and mobility needs, then quote the complete installed job.
Request a Free Assessmentor call (803) 926-1493
Specifications are provided by the manufacturer and may change without notice; product details and dimensions can vary slightly. If any detail differs from what’s shown here, we’ll contact you before your order ships.
Overview

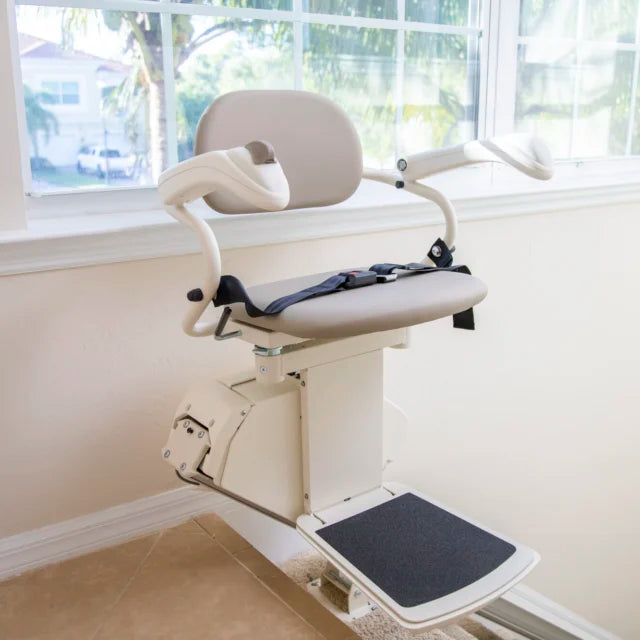

The Harmar Pinnacle SL300 Straight Stair Lift is a compact, dependable solution for safely traveling between floors of your home. Designed for straight residential staircases, the SL300 combines a slim profile, smooth operation, easy-to-use controls, and multiple safety features to help users maintain their independence at home.
With a 300 lb weight capacity, the Pinnacle SL300 features Harmar's patented nylon polymer gear rack and helical worm gear drive system. Unlike traditional systems that require grease or lubrication on the rail, the Pinnacle drive system provides clean, lubrication-free operation—helping keep grease off your stairs, clothing, and pets.
Key Features
- 300 lb weight capacity
- Designed for straight residential staircases
- Compact design folds to only 11" from the wall
- No grease or lubrication required on the gear rack
- Battery-powered operation provides up to 60 cycles during a power outage
- Smooth, efficient nylon polymer gear rack and worm gear drive
- 85° manual swivel seat with safety interlock
- Oversized folding footrest for added comfort and security
- Ergonomic control designed to be easier for users with limited hand dexterity
- Two remote controls included to call or send the stair lift
- Seat belt included
- Footrest obstruction sensor
- Overspeed brake
- Audible alert system
- Optional automatic folding rail
- 20 FPM travel speed
- Track lengths available up to 36 feet
- 2-Year Parts Warranty
- 10-Year Gear Rack Warranty
- 1-Year Battery Warranty
Compact Design for Narrow Stairways
One of the biggest advantages of the Harmar SL300 Pinnacle is how little space it takes up when it's not being used.
The chair, arms, and footrest fold to help keep the staircase open for other members of the household. When folded, the SL300 measures only 11 inches from the wall. Its rail mounts approximately 1 inch from the wall and stands just 3 inches tall, creating a clean, low-profile installation.
This makes the SL300 an excellent option when preserving usable staircase width is important.
Works During a Power Outage
The Pinnacle SL300 uses an efficient motor and battery-powered drive system that allows the stair lift to continue operating if your home's electricity goes out.
According to Harmar, the SL300 can provide up to 60 up-and-down cycles on its batteries during a power outage, giving you continued access between floors when household power is unavailable.
Clean, Lubrication-Free Drive System
Nobody wants grease along the side of their staircase.
The Pinnacle's patented drive system uses a nylon polymer gear rack and helical worm gear, eliminating the need to grease or lubricate the gear rack. This helps provide clean operation around your stairs, clothing, children, and pets.
Designed for Comfortable Everyday Use
The SL300 includes a 16.5" wide x 15" deep seat along with an oversized 12⅝" x 14¹¹⁄₁₆" footrest.
An ergonomic control switch helps make the stair lift easier to operate for people with arthritis or limited hand dexterity. At the upper landing, the seat swivels approximately 85 degrees, allowing the user to get on and off while facing away from the staircase.
Call/Send Remote Controls
Two remote controls are included with the Pinnacle SL300.
These allow you to call or send the stair lift from either end of the staircase, which is particularly useful when more than one person uses the lift or the chair has been left on the opposite floor.
Optional Folding Rail
If the bottom of your staircase ends near a hallway, doorway, or other high-traffic area, an optional folding rail can help keep the lower landing clear.
The SL300 is available with an automatic folding rail, which moves without requiring the user to stop the stair lift or operate additional switches. A folding rail can help eliminate an exposed section of track at the bottom of the staircase when the lift isn't being used.
Safety Features
The Harmar Pinnacle SL300 includes several built-in safety features:
- Seat belt
- Overspeed brake
- Audible alert system
- 85° manual swivel seat with interlock
- Footrest obstruction sensor
An optional chassis obstruction sensor is also available.
Harmar SL300 Specifications
| Specification | Harmar Pinnacle SL300 |
|---|---|
| Weight Capacity | 300 lbs |
| Seat Size | 16.5" W x 15" D |
| Footrest Size | 12⅝" W x 14¹¹⁄₁₆" D |
| Folded Width | 11" from wall |
| Folded Width with Folding Rail | 13⅝" |
| Standard Track Length | 15'6" |
| Maximum Track Length | Up to 36' |
| Incline Range | 27°–52°* |
| Speed | 20 FPM |
| Drive System | Patented nylon polymer gear rack / helical worm gear |
| Weight Capacity | 300 lbs |
| Application | Indoor straight staircases |
| Warranty – Parts | 2 Years |
| Warranty – Gear Rack | 10 Years |
| Warranty – Battery | 1 Year |
Inclines above 45° may require approval from the local jurisdiction.
Available Options
Customize your SL300 installation with available options including:
- Automatic folding rail
- Chassis obstruction sensor
- Extra rail and brackets
- Key lock
- Manual lowering tool
- Retractable seat belt
Why Choose the Harmar Pinnacle SL300?
The Pinnacle SL300 is a great choice for customers who need a reliable stair lift for a straight staircase without taking up unnecessary space.
Its combination of a 300 lb capacity, ultra-compact folded design, lubrication-free drive system, battery backup, swivel seat, safety sensors, and optional automatic folding rail makes it a strong everyday solution for improving accessibility inside the home.
The SL300 is also assembled in the USA, according to Harmar.
Professional Stair Lift Installation
Getting the right stair lift starts with properly measuring your staircase. Track length, stair angle, landing space, user needs, and any doors or walkways near the bottom of the stairs should all be considered before installation.
Our team can help determine whether the Harmar Pinnacle SL300 is the right stair lift for your home and discuss installation requirements and available options.
Need Help With a Harmar SL300 Stair Lift?
Have questions about the Harmar Pinnacle SL300, pricing, installation, measurements, or available options?
Call our mobility experts at (803) 926-1493.
We'll help you determine the right stair lift and configuration for your home before you order.
Free assessments are offered in Columbia, South Carolina and the surrounding area.
This product includes the manufacturer's limited warranty. Length and coverage vary by manufacturer and model. For the warranty terms on this specific product, call (803) 926-1493 or contact us.
