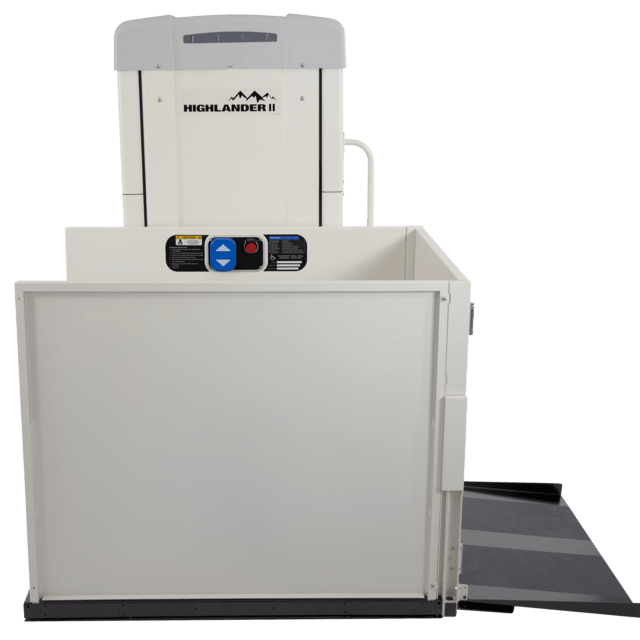

Harmar Highlander II Vertical Platform Lift
Vertical Platform Lift
(Model No. )
Verify before ordering
This system is measured, quoted and installed for your property, so it isn't sold online. Request a free assessment and we'll review your space, measurements and mobility needs, then quote the complete installed job.
Request a Free Assessmentor call (803) 926-1493
Specifications are provided by the manufacturer and may change without notice; product details and dimensions can vary slightly. If any detail differs from what’s shown here, we’ll contact you before your order ships.
Overview
The Harmar Highlander II Vertical Platform Lift is a heavy-duty accessibility solution designed to safely transport a user while remaining in a wheelchair, power wheelchair, or mobility scooter.
With a 750 lb weight capacity and models capable of lifting from 53 inches up to 171 inches, the Highlander II can provide wheelchair access to porches, decks, garages, raised entrances, and even elevation changes between floors.
Designed for both residential and commercial applications, the Highlander II combines a compact footprint with Harmar's SteadyDrive technology, Guardian diagnostic system, easy-to-use Big Blue Paddle control, and numerous available safety and accessibility options.
Key Features
- 750 lb weight capacity
- Accommodates many wheelchairs, power chairs, and mobility scooters
- Maximum lifting heights from 53" to 171"
- Suitable for residential and commercial applications
- Designed for indoor or outdoor installations
- Multiple platform sizes available
- SteadyDrive technology for a smooth and stable ride
- Guardian System with four high-contrast LED status indicators
- Large 4" x 5" Big Blue Paddle control
- Seal-Kor powder-coated finish
- Stainless steel hardware for outdoor applications
- Safety pan underneath the platform
- Emergency stop button
- Overspeed brake
- Door and gate interlocks
- Manual lowering system
- Optional ReadyUPS battery backup
- Optional platform and landing gates
- Optional enclosure kits
- Fixed or automatic folding ramp options
- Wired or wireless call/send controls
- 3-Year Parts Warranty
Multiple Lifting Heights – Up to 14 Feet
One of the biggest advantages of the Highlander II series is the wide range of available lifting heights.
| Model | Maximum Lifting Height |
|---|---|
| VPL400 | Up to 53" |
| VPL600 | Up to 77" |
| VPL800 | Up to 101" |
| VPL1000 | Up to 125" |
| VPL1200 | Up to 149" |
| VPL1400 | Up to 171" |
This allows the Highlander II to handle everything from a few steps leading to a porch to elevation changes of more than 14 feet.
A Space-Saving Alternative to a Wheelchair Ramp
A wheelchair ramp can take up considerably more space than many homeowners expect.
As Harmar explains in its Highlander II brochure, a ramp may require approximately 1 foot of ramp for every 1 inch of rise. That means a 24-inch elevation change could require approximately 24 feet of ramping.
The Highlander II Vertical Platform Lift provides another option by moving the user vertically, making it especially useful where yard, driveway, garage, or walkway space is limited.
Common applications include:
- Front and back porches
- Decks
- Garage entrances
- Raised home entrances
- Multi-level homes
- Commercial entrances
- Elevation changes between floors
750 lb Weight Capacity
The Highlander II has a 750 lb lifting capacity, providing room for the combined weight of the user and many common mobility devices.
Harmar offers five platform sizes, allowing the lift to accommodate a variety of manual wheelchairs, power wheelchairs, mobility scooters, and—in appropriate configurations—the user and caregiver.
Five Platform Sizes
Choosing the proper platform size is important, particularly for larger power chairs and scooters.
| Clear Platform Size | Guard Panel |
|---|---|
| 36" x 48" | 36" |
| 36" x 54" | 42" |
| 36" x 60" | 42" |
| 42" x 54" | 42" |
| 42" x 60" | 42" |
The best platform size will depend on the dimensions and turning requirements of the mobility device being used.
SteadyDrive – Smooth & Stable Operation
The Highlander II features Harmar's SteadyDrive system, which uses a high-lead ACME screw to help provide a smooth, quiet, and stable ride.
According to Harmar, the screw rotates up to 75% slower than competing designs, helping reduce vibration. A sealed gearbox also replaces traditional pulley systems, which may help reduce maintenance requirements.
Guardian Diagnostic System
The Guardian System uses four bright, high-contrast LED indicators to provide continuous information about the lift.
The system monitors critical functions and can provide feedback about the lift's operating status, battery condition, and maintenance needs, making it easier for the owner or service technician to understand what is happening with the VPL.
Easy-to-Use Big Blue Paddle
Instead of relying on small buttons that may be difficult for some users to see or operate, the Highlander II uses Harmar's Big Blue Paddle.
The oversized 4" x 5" high-contrast ergonomic rocker control provides simple up-and-down operation. The user presses and holds the appropriate direction throughout travel.
Optional ReadyUPS Battery Backup
For additional peace of mind during a power outage, the Highlander II can be equipped with Harmar's optional ReadyUPS battery backup system.
If household power is lost, the UPS automatically activates and can provide a minimum of five complete up-and-down cycles, depending on battery condition and charge level.
Designed for Outdoor Use
The Highlander II is built for demanding accessibility applications and can be configured for outdoor installation.
The lift features a Seal-Kor powder-coated finish and stainless steel hardware, helping protect the unit in exterior environments.
This makes it a strong choice for wheelchair access to outdoor porches, decks, and entrances.
Built-In Safety Features
The Highlander II incorporates multiple safety features, including:
- Safety pan beneath the platform
- Four LED status indicators
- Emergency stop button on the platform
- Overspeed brake
- Door and gate interlocks
- Manual lowering tool
The system is also ETL listed and rated for both residential and commercial applications.
Harmar Highlander II Specifications
| Specification | Highlander II |
|---|---|
| Weight Capacity | 750 lbs |
| Maximum Lift Height | Up to 171" depending on model |
| Speed | 9.5–15 FPM |
| Drive | ACME Screw |
| Motor | 90V 2/3 HP Fully Sealed DC Gear Motor |
| Power | 120V AC |
| Circuit Requirement | 15 AMP Circuit Breaker |
| Platform Widths | 36" or 42" |
| Platform Lengths | 48", 54", or 60" depending on configuration |
| Control | 4" x 5" Constant-Pressure Paddle |
| Indoor/Outdoor | Indoor or Outdoor Applications |
| Application | Residential & Commercial |
| Parts Warranty | 3 Years |
| Battery Warranty | 1 Year, if included |
The current sell sheet lists a travel speed range of 9.5–15 FPM, while the older Highlander II brochure lists 10.4 FPM. For your website, I would use the newer sell-sheet specification of 9.5–15 FPM.
Available Options
The Highlander II offers a large selection of options depending on the installation:
- ReadyUPS battery backup system
- 36" or 42" platform gates with EMI interlock
- Grab bar
- Key lock
- 36" or 42" landing gates with interlock
- Fire-rated doors
- Enclosure kits
- Phone jack
- Fixed ramp
- Automatic folding ramp
- Wired or wireless call/send controls
- Lighted emergency stop with alarm
- 3-stop configuration with 3-button control panel
These options allow the Highlander II to be configured for everything from a straightforward residential porch installation to more complex accessibility applications.
Why Choose the Harmar Highlander II?
The Harmar Highlander II is an excellent option when stairs or significant elevation changes make wheelchair access difficult.
Its combination of a 750 lb capacity, lifting heights up to 171", multiple platform sizes, indoor/outdoor capability, residential and commercial ratings, advanced diagnostics, and extensive configuration options makes it one of Harmar's most versatile vertical platform lift systems.
For customers considering a large wheelchair ramp, the Highlander II can also provide a much more compact accessibility solution.
Professional Installation Required
Vertical platform lifts require proper planning and professional installation. Before selecting a Highlander II, the installation site should be evaluated for:
- Required lifting height
- Platform size
- Wheelchair or scooter dimensions
- User and mobility device weight
- Upper and lower landing configuration
- Gates or doors
- Ramp requirements
- Electrical requirements
- Indoor or outdoor location
- Local permitting and building-code requirements
Our mobility experts can help determine the appropriate Highlander II model, platform size, lifting height, gate configuration, and available options for your application.
