Harmar Helix Curved Stairlift
Stair Lift
(Model No. )
Verify before ordering
This system is measured, quoted and installed for your property, so it isn't sold online. Request a free assessment and we'll review your space, measurements and mobility needs, then quote the complete installed job.
Request a Free Assessmentor call (803) 926-1493
Specifications are provided by the manufacturer and may change without notice; product details and dimensions can vary slightly. If any detail differs from what’s shown here, we’ll contact you before your order ships.
Overview

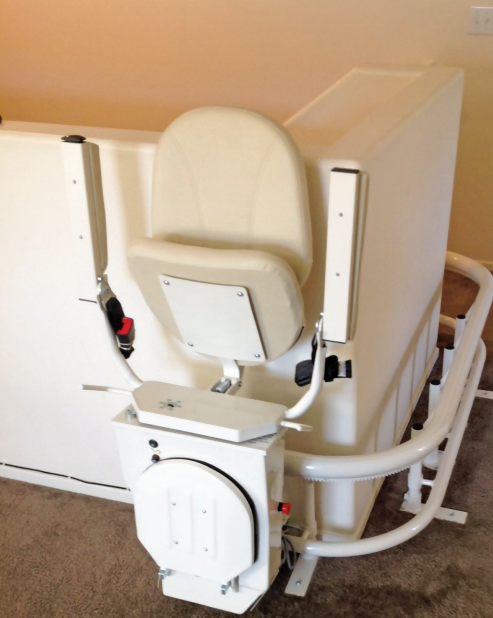

The Harmar Helix Curved Stair Lift is a custom-built mobility solution designed for staircases with curves, turns, intermediate landings, spiral configurations, and other complex layouts.
Unlike a standard straight stair lift, every Helix system is designed specifically around the shape and dimensions of your staircase. Harmar uses a calibrated camera measurement system for digital accuracy, then constructs a durable, precision-bent steel rail to follow the unique path of your stairs.
With a 350 lb weight capacity, comfortable 19" wide seat, compact rail design, and numerous built-in safety features, the Helix provides a smooth and dependable way to regain access to every level of your home.
Key Features
- Custom-built for your staircase
- Designed for curved, spiral, multi-landing, and complex staircases
- 350 lb weight capacity
- Precision-bent steel rail
- Digital staircase measurements for an accurate custom fit
- Narrow-profile rail hugs the staircase with tighter curves
- 19" wide x 15" deep seat
- Updated seat cushion allows the user to sit farther back
- Flat seat bottom designed to make transfers easier
- Retractable seat belt
- Non-skid footrest
- Footrest and chassis obstruction sensors
- Seat swivel safety interlock
- Constant-pressure controls
- Overspeed brake
- Track configurations available up to 164 feet
- Handles inclines up to 58°
- Available for residential and commercial applications
- Optional outdoor package
- Limited lifetime warranty on the drive system and structure
Custom Designed for Your Staircase
The biggest difference between the Harmar Helix and a traditional straight stair lift is the rail.
Every curved staircase is different. The Helix is measured using a calibrated camera system and then manufactured with a custom precision-bent steel rail designed specifically for the staircase.
This allows the lift to navigate configurations that may include:
- 90° turns
- 180° turns
- Spiral staircases
- Sweeping curves
- Intermediate landings
- Parking locations
- Drop noses
- Top overruns
Harmar offers several Helix configurations to accommodate these different staircase designs.
Tight Curves & Space-Saving Design
A curved stair lift needs to follow the staircase closely without unnecessarily reducing the amount of usable space.
The Helix features a narrow-profile rail that mounts closer to the wall, allowing it to follow tighter bends and radius curves. This helps preserve more room on the staircase for other family members while providing the rider with a smooth path around turns.
When folded, the Helix measures approximately 16 inches from the wall.
Comfortable 19" Wide Seat
The Helix includes a generous 19" wide x 15" deep seat.
The updated seat cushion is designed to allow the rider to sit farther back, while the flat seat bottom can make transferring on and off the stair lift easier.
A retractable seat belt and non-skid footrest provide additional security during the ride.
Built-In Safety Features
The Harmar Helix incorporates multiple safety systems, including:
- Direction limit switches
- Final limit switch
- Footrest obstruction sensors
- Chassis obstruction sensors
- Seat swivel interlock
- Constant-pressure controls
- Retractable seat belt
- Overspeed brake
These features are designed to provide added protection throughout the stair lift's travel path.
Harmar Helix Specifications
| Specification | Harmar Helix |
|---|---|
| Weight Capacity | 350 lbs |
| Seat Size | 19" W x 15" D |
| Footrest Size | 11" x 12" |
| Folded Width | 16" from wall |
| Standard Track Lengths | 16', 18' & 24' depending on configuration |
| Maximum Additional Rail | Up to 164' |
| Maximum Incline | Up to 58° |
| Travel Speed | 20 FPM |
| Drive System | Steel Rack & Pinion |
| Rail Construction | Custom Precision-Bent Steel |
| Application | Residential & Commercial |
| Outdoor Option | Available |
| Drive/Structure Warranty | Limited Lifetime |
| Parts Warranty | 2 Years |
| Battery Warranty | 1 Year |
The manufacturer's specification sheet confirms the 350 lb capacity, 19" x 15" seat, 20 FPM speed, 16" folded width, steel rack-and-pinion drive, and incline capability up to 58°.
Available Helix Curved Stair Lift Configurations
The Helix can accommodate a wide variety of staircase layouts, including:
CSL590-18 — 0°–90° first turn, up to 18' rail
CSL590-24 — 0°–90° first turn, up to 24' rail
CSL580-18 — 91°–180° first turn, up to 18' rail
CSL580-24 — 91°–180° first turn, up to 24' rail
CSL570 — Sweep configuration, up to 24' rail
CSL560 — Spiral configuration, up to 24' rail
CSL510 — Straight staircase with overrun, up to 16' rail
CSL511 — Straight staircase with intermediate landing, up to 16' rail
Additional custom configurations can incorporate turns, parking areas, intermediate landings, drop noses, and top overruns.
Available Options
Depending on your installation, available Helix options include:
- Emergency stop button
- Key switch
- Additional call/send controls
- Additional charging station
- Black or beige rail, chassis, and upholstery
- Outdoor package
Indoor or Outdoor Installation
The Helix isn't limited to indoor staircases.
An optional outdoor package is available for curved exterior stairways, making the Helix an option when an outdoor staircase has turns or curves that prevent the use of a standard straight outdoor stair lift.
Why Choose the Harmar Helix?
The Helix is designed for situations where an off-the-shelf straight stair lift simply won't work.
Its custom-built rail follows the actual shape of your staircase, allowing the lift to navigate turns, curves, landings, and more complicated stair configurations while maintaining a relatively narrow profile.
For homeowners who want to remain in their homes but have difficulty safely navigating a curved staircase, the Harmar Helix provides a customized accessibility solution without requiring major structural changes.
Professional Measurement & Installation Required
Because every Helix Curved Stair Lift is custom-manufactured, accurate measurements are extremely important.
Your staircase must be professionally evaluated and measured before the lift can be ordered. The final configuration and price will depend on factors such as:
- Staircase length
- Number and degree of turns
- Intermediate landings
- Staircase incline
- Starting and stopping locations
- Parking requirements
- Indoor or outdoor installation
- Additional rail requirements
Our mobility experts can help determine the proper Helix configuration and walk you through the measurement, ordering, and installation process.
Need a Curved Stair Lift?
Have a curved, spiral, or multi-landing staircase and aren't sure what stair lift you need?
Call our mobility experts at (803) 926-1493.
We'll help review your staircase and determine whether the Harmar Helix Curved Stair Lift is the right solution for your home.
Free assessments are offered in Columbia, South Carolina, and the surrounding area.
This product includes the manufacturer's limited warranty. Length and coverage vary by manufacturer and model. For the warranty terms on this specific product, call (803) 926-1493 or contact us.
